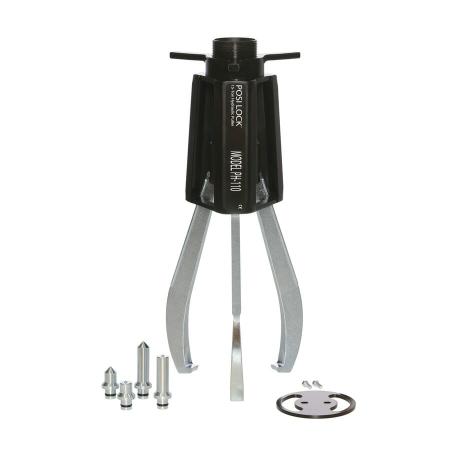

PHA-110L

• Model PHA‐110L
• Number of Jaws: 3
• Reach (C): 16 in. (406 mm)
• Spread Range (A): 1.5 to 22 in. (38 to 559 mm)
• *Weight: 61 lbs (27.7 kg)
• *Overall Length (B): 32.78 in. (832.6 mm)
• Jaw Width (E): 1.00 in (25.4 mm)
• Jaw Length (D): 17.65 in. (448.31 mm)
• Tip Clearance (F): .57 in. (14.48 mm)
• Tip Depth (G): .56 in (14.22 mm)

*Weight and Overall Length includes puller, lift plate and cylinder.
