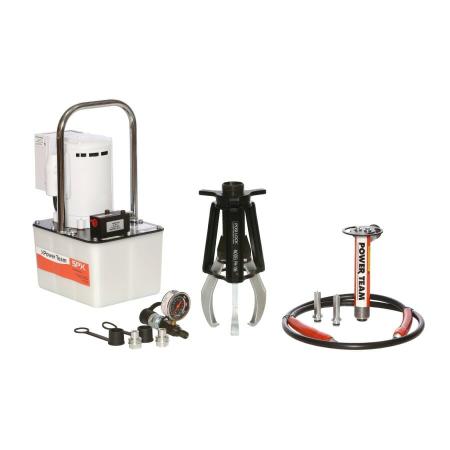

PHES-106SPX_900
hydraulic-diagram
Home Hydraulic Puller Systems 5 to 50 Ton PHES-106

PHES-106

  • Model PHES-106
  • Number of Jaws: 2
  • Capacity: 5 tons (44 kN)
  • Reach (C): 6 in. (152.4 mm)
  • Spread Range (A): .5 to 8 in. (12.7 to 203.2 mm)
  • Weight: 13.75 lbs (6.24 kg)
  • Overall Length (B): 15.94 in. (404.8 mm)
  • Jaw Width (E): .75 in. (19.05 mm)
  • Jaw Length (D): 7.19 in. (182.6 mm)
  • Tip Clearance (F): .22 in. (5.59 mm)
  • Tip Depth (G): .26 in. (6.6 mm)

*Weight and Overall Length includes puller, lift plate and cylinder.

Set Includes:

  • Puller Iron
  • Ram Point Set
  • Lift Plate
  • Hydraulic Cylinder
  • Electric Pump
  • Gauge Adapter\10,000 PSI Gauge
  • Coupler Set with Dust Caps
  • 10-foot Heavy-Duty Hose

PHES-106 Spec Sheet
PHES-106 Parts
Hydraulic Puller Instructions 5 to 50 Ton
