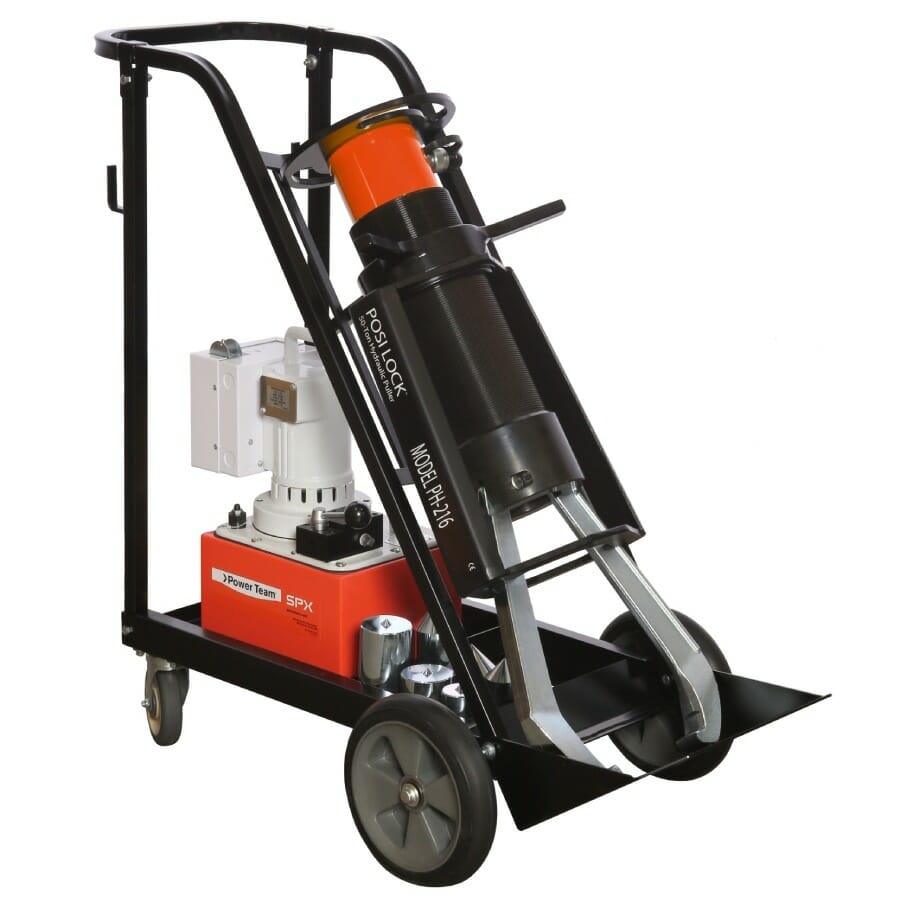

PHES-216

• Model PHES-216
• Number of Jaws: 2
• Capacity: 50 tons (445 kN)
• Reach (C): 14 in. (356 mm)
• Spread Range (A): 3 to 25 in. (76 to 635 mm)
• *Weight: 192 lbs (87 kg)
• *Overall Length (B): 36.20 in. (919.5 mm)
• Jaw Width (E): 1.44 in. (36.58 mm)
• Jaw Length (D): 16.29 in. (413.77 mm)
• Tip Clearance (F): .598 in. (15.19 mm)
• Tip Depth (G): .46 in. (11.68 mm)

*Weight and Overall Length includes puller, lift plate and cylinder.

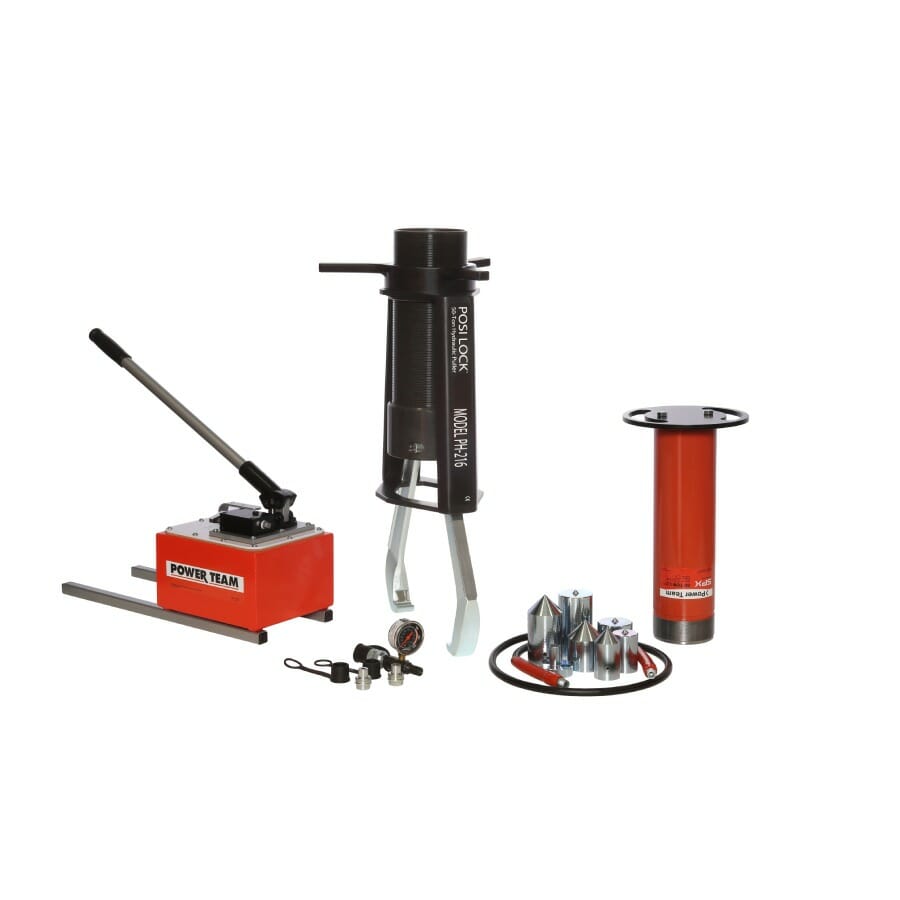

Set Includes:

• Puller Iron
• Ram Point Set
• Lift Plate
• Hydraulic Cylinder Electric Pump
• Gauge Adapter
• 10,000 PSI Gauge
• Coupler Set with Dust Caps
• 10-foot Heavy-Duty Hose
• Storage/Transport Cart
