204-01-01
360 2-3-jaw-puller-diagram 204-gallery-01 204-gallery-03 204-gallery-02
HomeManual Pullers2- and 3- Jaw Manual Pullers 204 Manual Puller

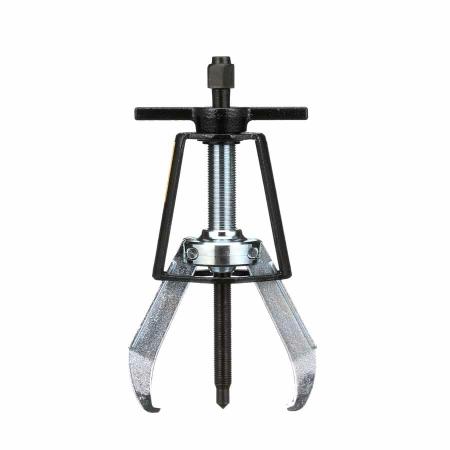

204 Manual Puller

  • Model 204
  • Jaws: 2
  • Capacity: 2 ton (18 kN)
  • Reach (B): 4 in (102 mm)
  • Spread Range (C): .5 to 5 in (13 to 127 mm)
  • Weight: 3.2 lbs (1.5 kg)
  • Center Bolt Diameter (A): .5 in (12.7 mm)
  • Overall Length (D): 10.05 in (255.3 mm)
  • Jaw Width (E): .62 in (15.8 mm)
  • Hex Socket Size (F): .75 in (19 mm)
  • Maximum Torque: 20 ft./lb. (27 N·m)

204 Spec Sheet
204 Accessories
204 Parts
Instruction Sheet for All Models

Related Products

four manual pullers in the set against a
Close

Puller Set PM4S

Close

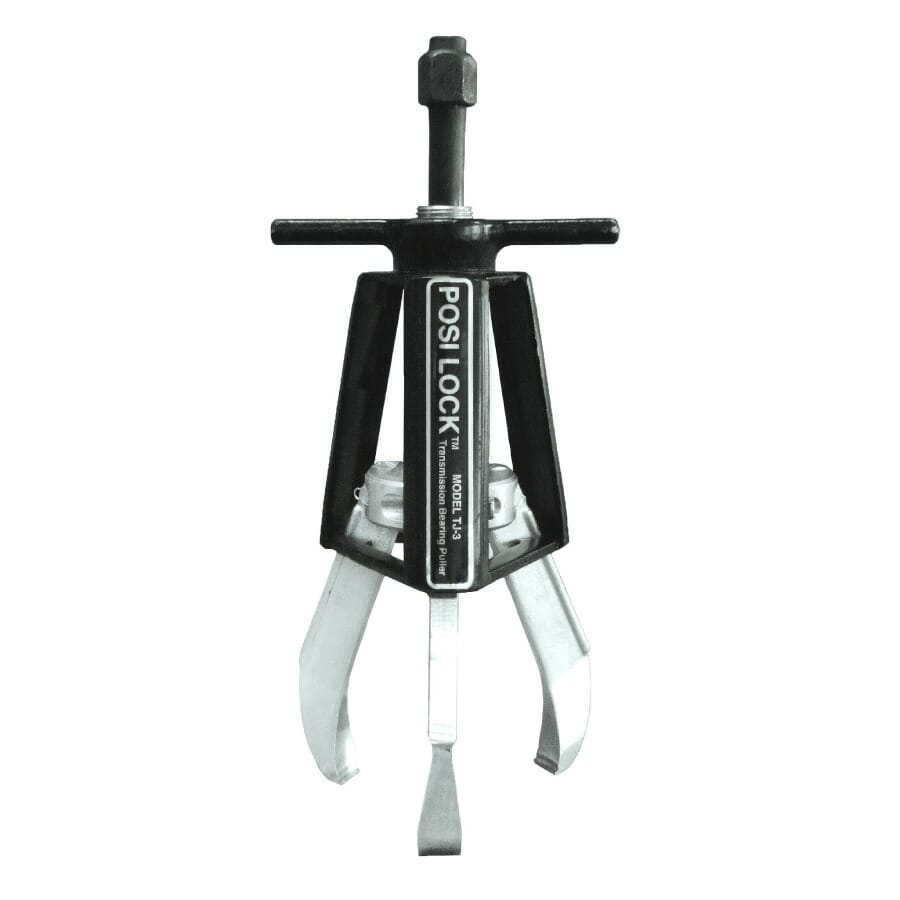

TJ-3 Transmission Bearing Puller

Close

Puller Set PM6

Close

Hub Puller Adaptor Set HP-2

six standing manual pullers with a view of them laying down
Close

Puller Set PM10

five pullers in the set against a white and blue background
Close

Puller Set PM5

Close

MPS16

Close

104 Manual Puller

an open case with two pullers and accessories laying on light blue cushioning
Close

Slide Hammer Puller Set TB-1045

four pullers on a white and blue background
Close

Puller Set PM4

Close

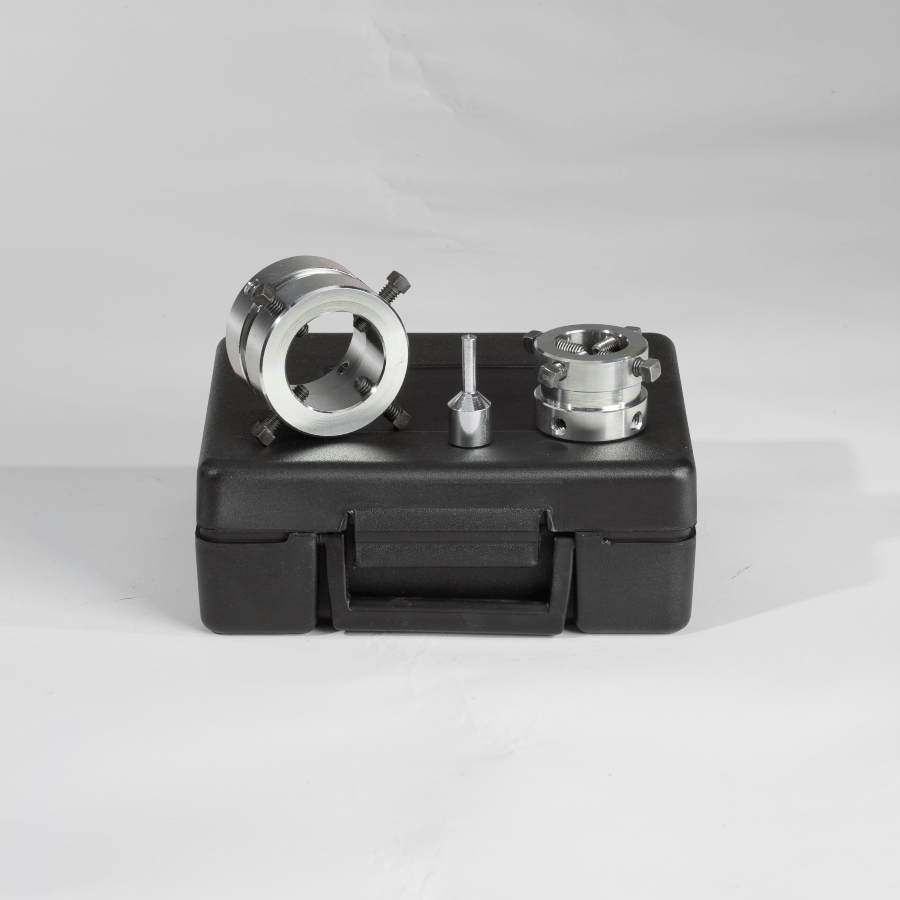

Hub Puller Adaptor Set HP-1
