104-01-01
360 2-3-jaw-puller-diagram 104-gallery 104_2A
Home Manual Pullers 2- and 3- Jaw Manual Pullers 104 Manual Puller

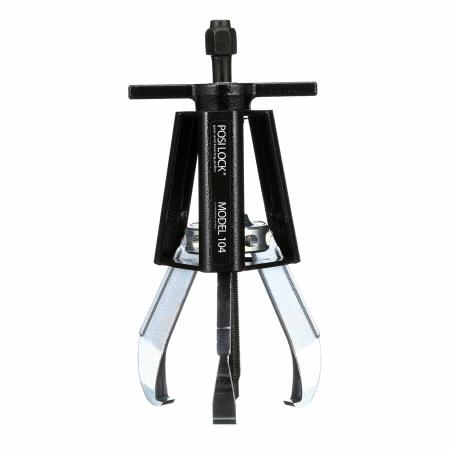

104 Manual Puller

  • Model 104
  • Jaws: 3
  • Capacity: 5 ton (44 kN)
  • Reach (B): 4 in (102 mm)
  • Spread Range (C): .5 to 5 in (13 to 127 mm)
  • Weight: 4.1 lbs (1.9 kg)
  • Center Bolt Diameter (A): .5 in (12.7 mm)
  • Overall Length (D): 10.05 in (255.3 mm)
  • Jaw Width (E): .62 in (15.8 mm)
  • Hex Socket Size (F): .75 in (19 mm)
  • Maximum Torque: 40 ft./lb. (54 N·m)

104 Spec Sheet
104 Accessory Items
104 Parts
Instruction Sheet for All Models
