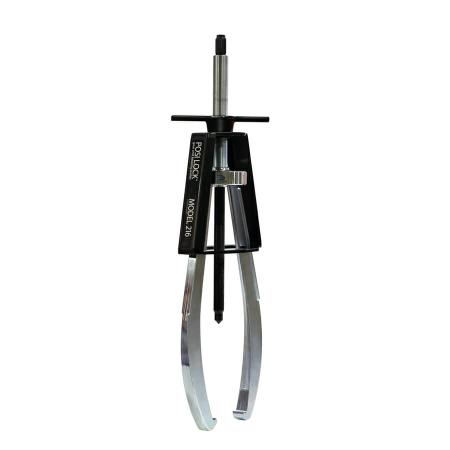

216L Manual Puller

• Model 216
• Jaws: 2
• Capacity: 35 ton (311 kN)
• Reach (B): 25 in (635 mm)
• Spread Range (C): 2 to 38 in (50.8 to 965.2 mm)
• Weight: 67 lbs (30.4 kg)
• Center Bolt Diameter (A): 1.19 in (30.23 mm)
• Overall Length (D): 32.04 in (813.8 mm)
• Jaw Width (E): 1.50 in (38 mm)
• Hex Socket Size (F): 1.50 in (38 mm)
• Maximum Torque: 800 ft./lb. (1,081 N·m)
