Home Hydraulic Puller Systems 5 to 50 Ton PHES-116/NC

PHES-116/NC

  • Model PHES-116/NC
  • Number of Jaws: 3
  • Capacity: 50 tons (445 kN)
  • Reach (C): 26 in. (660 mm)
  • Spread Range (A): 2 to 38 in. (51 to 965 mm)
  • *Weight: 230 lbs (104.3 kg)
  • *Overall Length (B): 47.68 in. (1210.9 mm)
  • Jaw Width (E): 1.44 in. (36.5 mm)
  • Jaw Length (D): 27.57 in. (700.3 mm)
  • Tip Clearance (F): .87 in. (22.1 mm)
  • Tip Depth (G): .67 in. (17.1 mm)

*Weight and Overall Length includes puller, lift plate and cylinder.

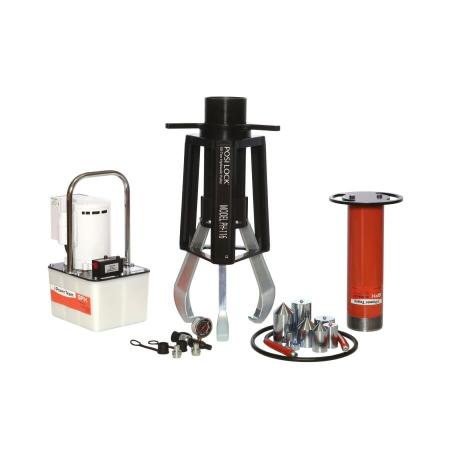

Set Includes:

  • Puller Iron
  • Ram Point Set
  • Lift Plate
  • Hydraulic Cylinder
  • Electric Pump
  • Gauge Adapter
  • 10,000 PSI Gauge
  • Coupler Set with Dust Caps
  • 10-foot Heavy-Duty Hose

PHES-116/NC Spec Sheet
PHES-116/NC Accessories
PHES-116/NC Parts
Hydraulic Puller Instructions 5 to 50 Ton
