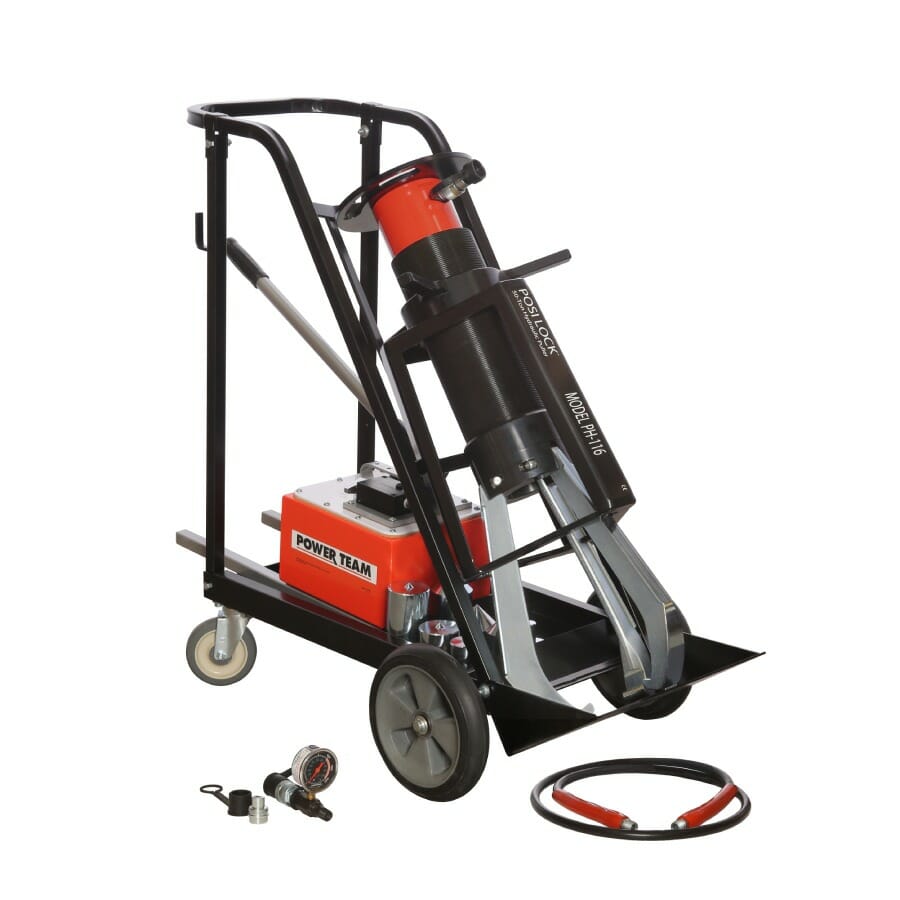

PHMS-116SPX

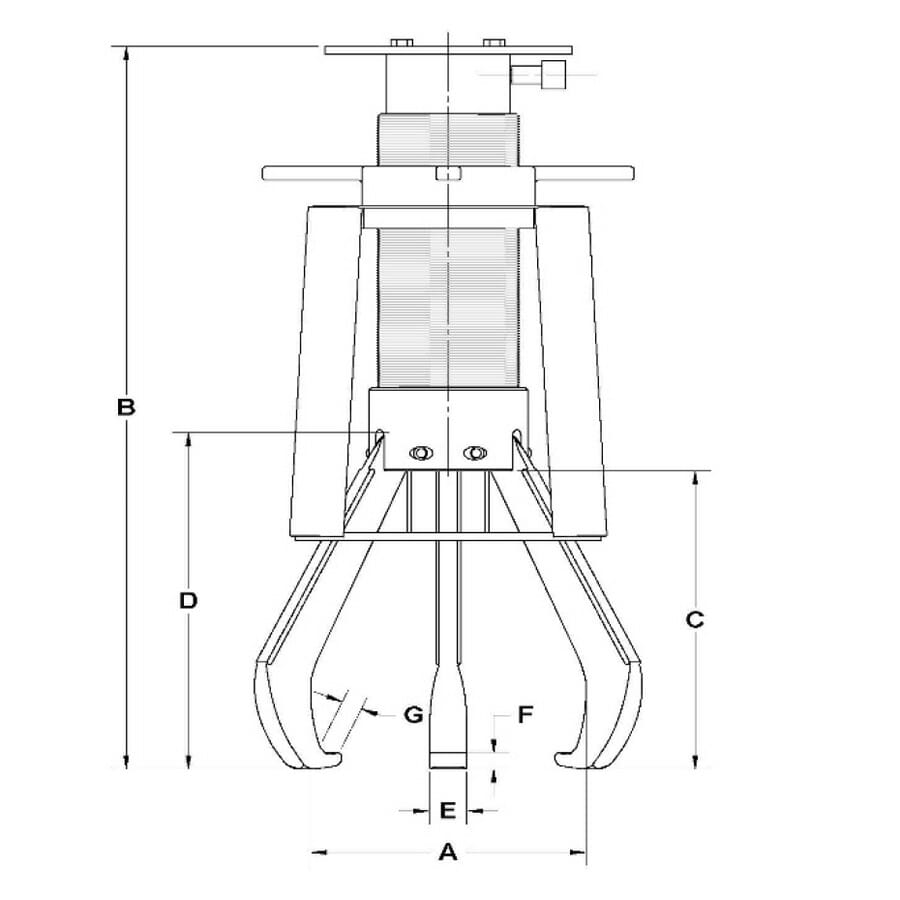

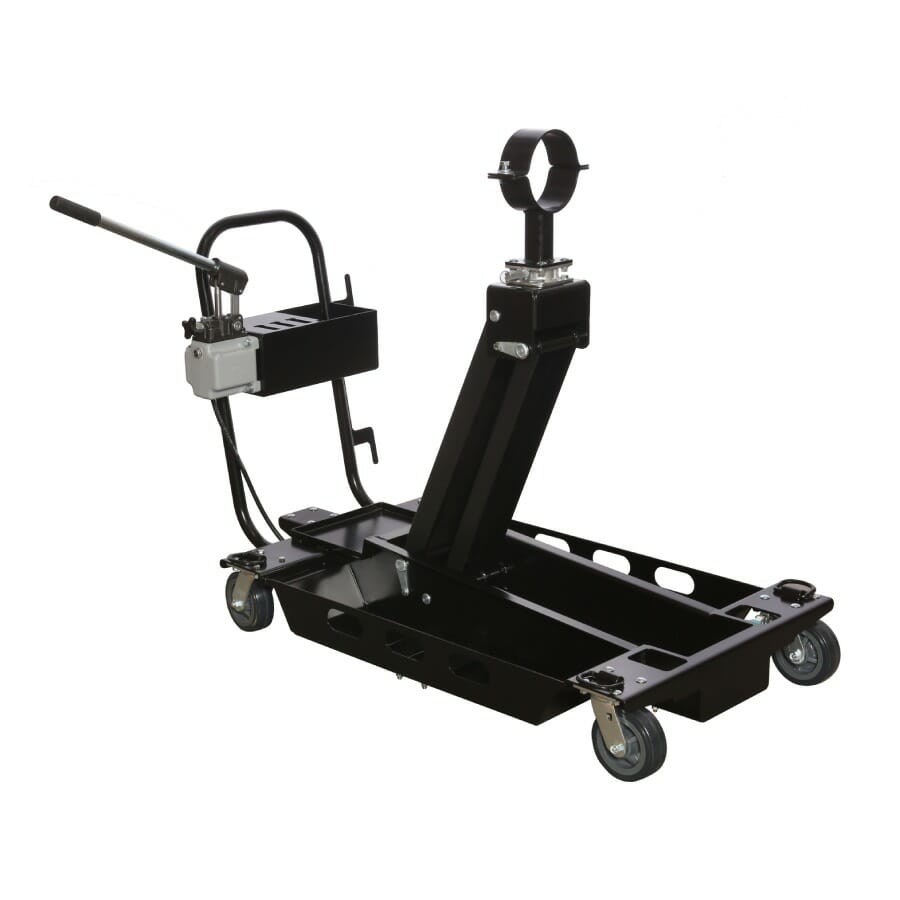

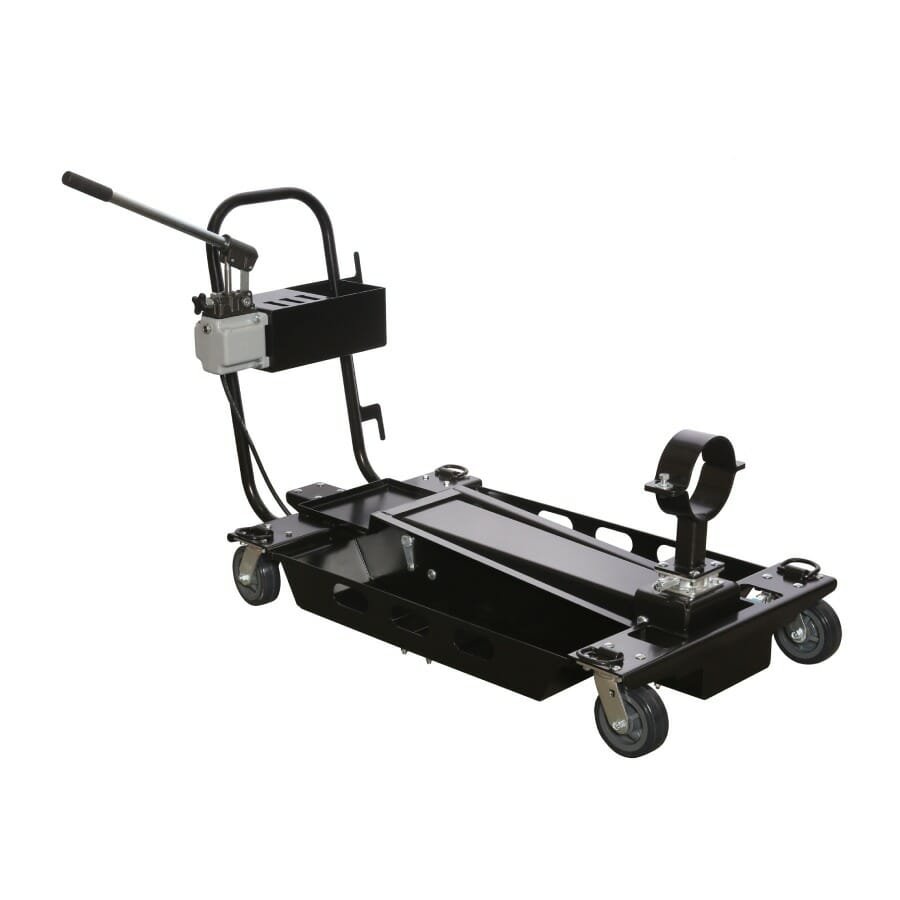

hydraulic-diagram C-50T CART LOWERED C-50T CART RAISED
Home Hydraulic Puller Systems 5 to 50 Ton PHMS-116

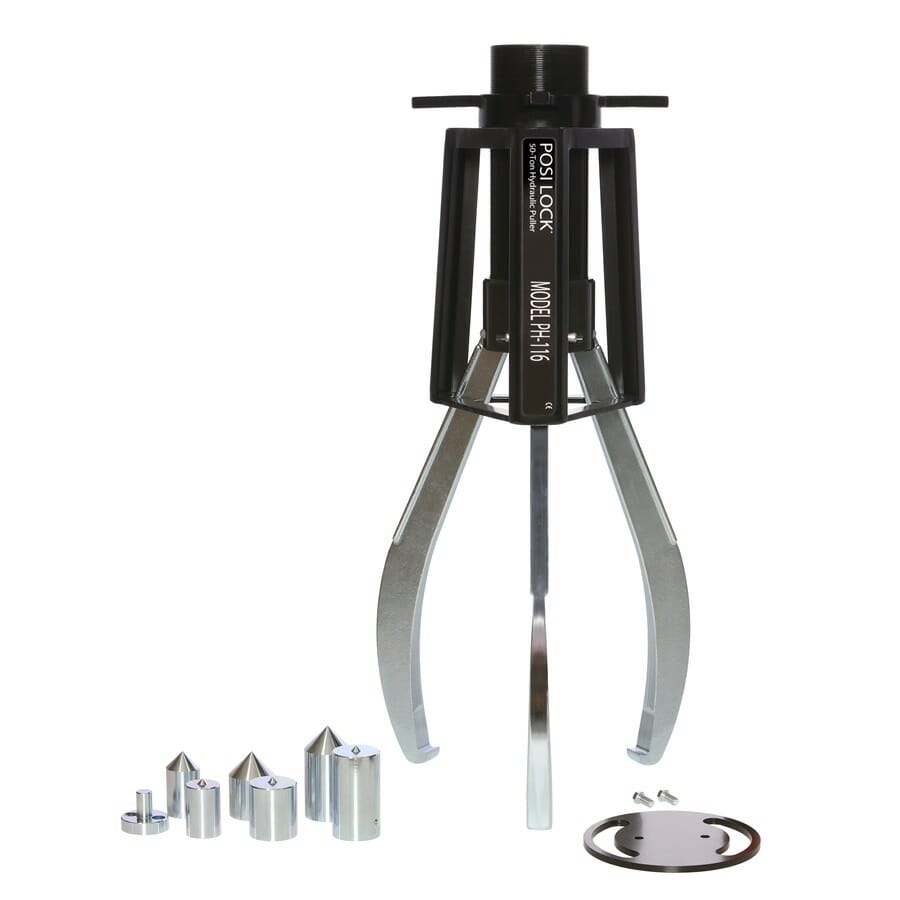

PHMS-116

  • Model PHMS-116
  • Number of Jaws: 3
  • Capacity: 50 tons (445 kN)
  • Reach (C): 14 in. (356 mm)
  • Spread Range (A): 3 to 25 in. (76 to 635 mm)
  • *Weight: 202 lbs (91 kg)
  • *Overall Length (B): 36.20 in. (919.5 mm)
  • Jaw Width (E): 1.44 in. (36.58 mm)
  • Jaw Length (D): 16.29 in. (413.77 mm)
  • Tip Clearance (F): .598 in. (15.19 mm)
  • Tip Depth (G): .46 in. (11.68 mm)

*Weight and Overall Length includes puller, lift plate and cylinder.

Set Includes:

  • Puller Iron
  • Ram Point Set
  • Lift Plate
  • Hydraulic Cylinder
  • Manual/Hand Pump
  • Gauge Adapter
  • 10,000 PSI Gauge
  • Coupler Set with Dust Caps
  • 10-foot Heavy-Duty Hose
  • Storage/Transport Cart

PHMS-116 Spec Sheet
PHMS-116 Accessories
PHMS-116 Parts
Hydraulic Puller Instructions 5 to 50 Ton

Related products

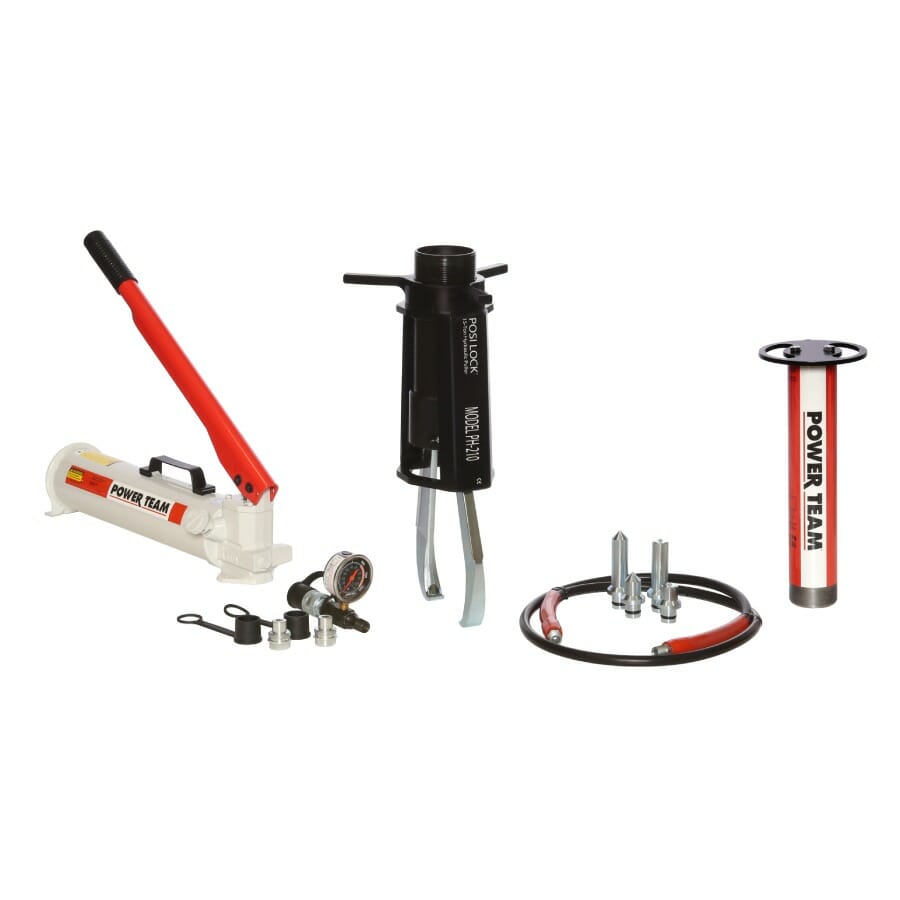

PHMS-210

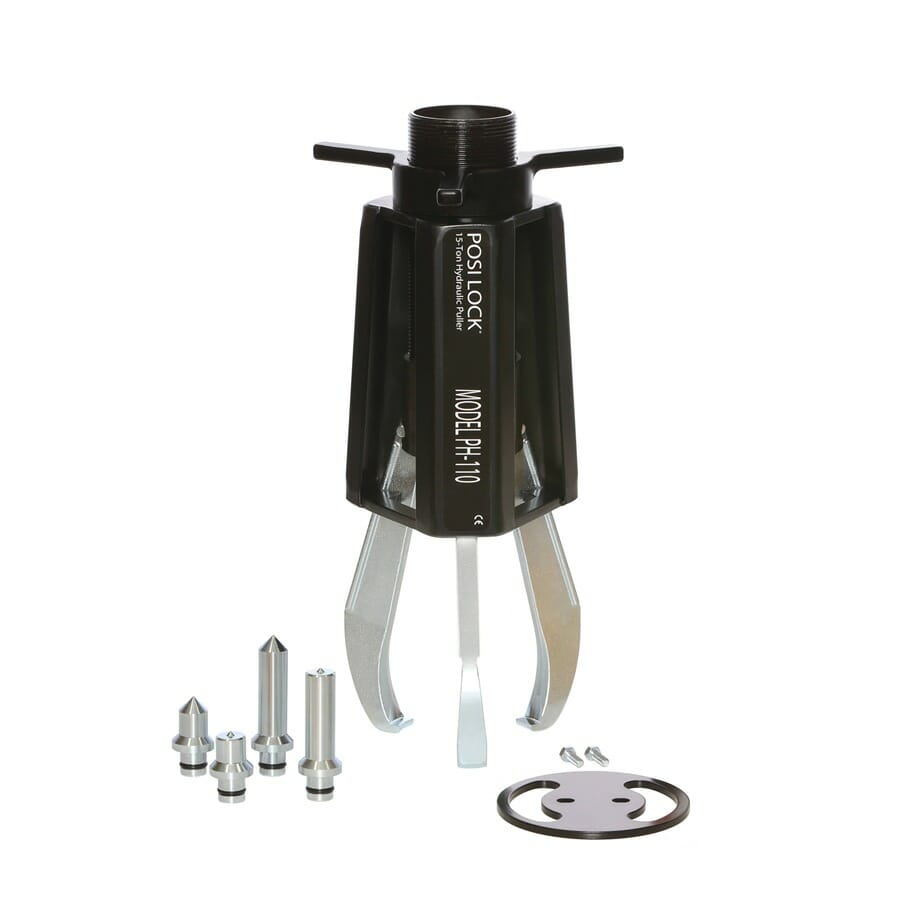

PHA-110

PHMS-206

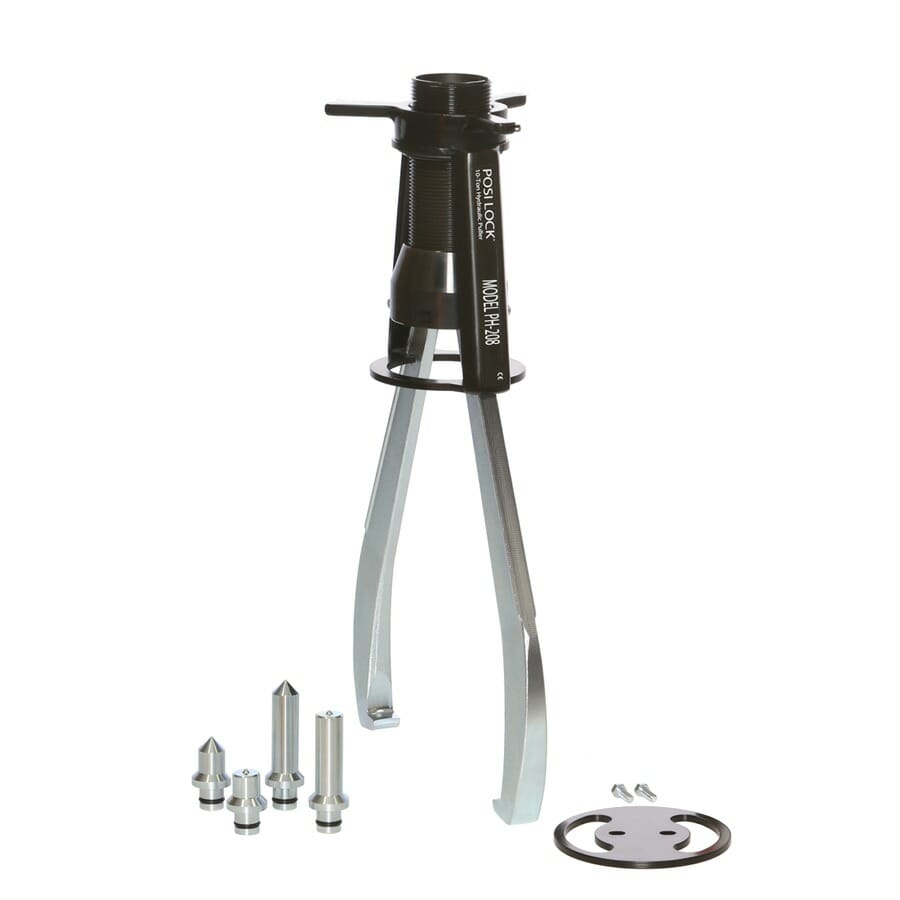

PHA-208XL

PHA-116L

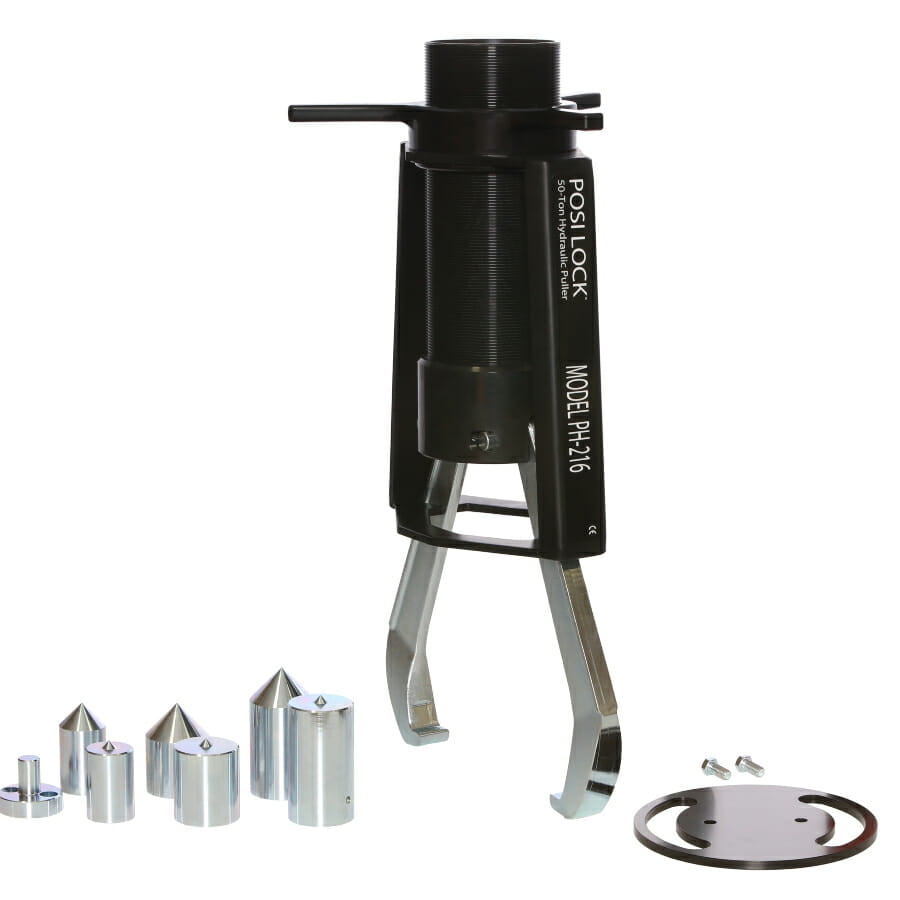

PHA-216

PHA-213

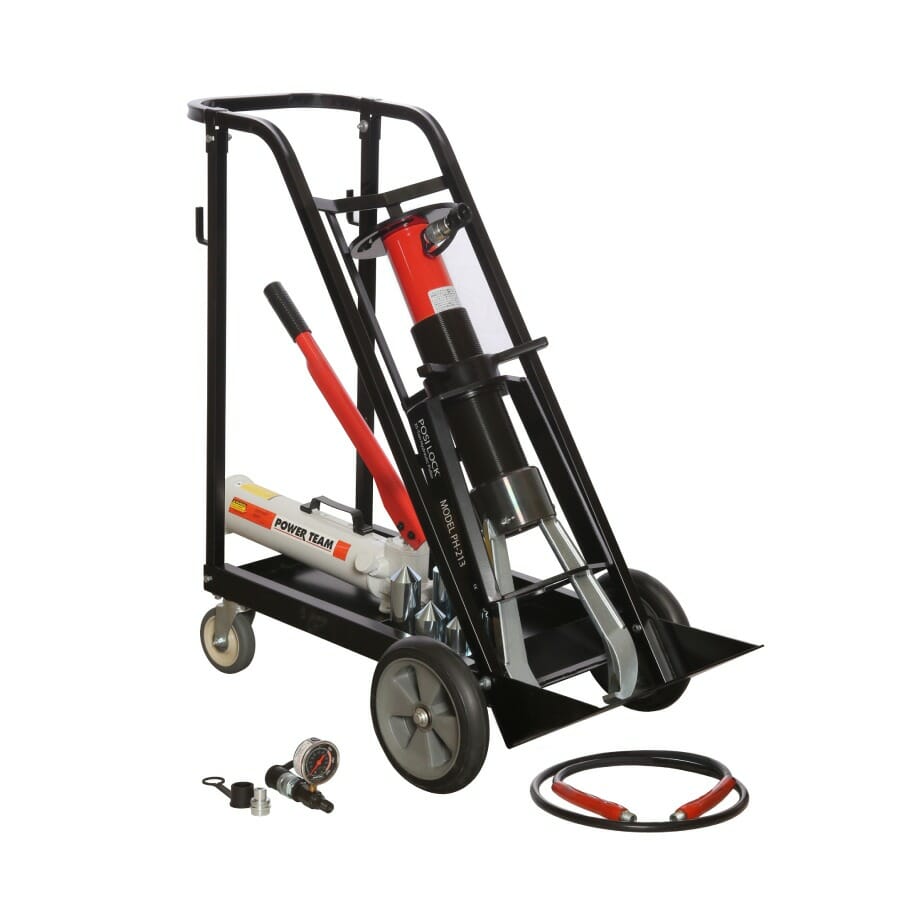

PHMS-213
